System Filter

DESCRIPTION

The PuraGuard

system filter is used to assist the

production of purified compressed air on high air use vehicles.

The PuraGuard

system filter consists of a filter element

mounted in a die cast aluminum housing. The sump

housing contains a drain valve for maintenance. For ease

of serviceability, all maintenance kits do not require removal

of the PuraGuard

system filter from its mounting on the

vehicle.

High air use vehicles (e.g. transit vehicles) may require the

air compressor to exceed its normal duty cycle. The resulting

high compressor discharge temperatures can allow oil

aerosols to pass through the air dryer, condensing

downstream in air system components.

The PuraGuard

system filter follows the air dryer in the system

and removes approximately 99% of oil aerosols. On vehicles

not using an air dryer, the PuraGuard

system filter follows

the supply (“wet tank”) reservoir (see Figures 3 & 4).

OPERATION

GENERAL (See Figure 2)

Compressed air passes through the supply port of the

PuraGuard

system filter and travels downward through the

center of the filter element. As the air passes through the

filter material, oil in liquid and aerosol form are removed and

collected in the sump. The air travels back up from the

sump, through the PuraGuard

system filter delivery port

and into the air system.

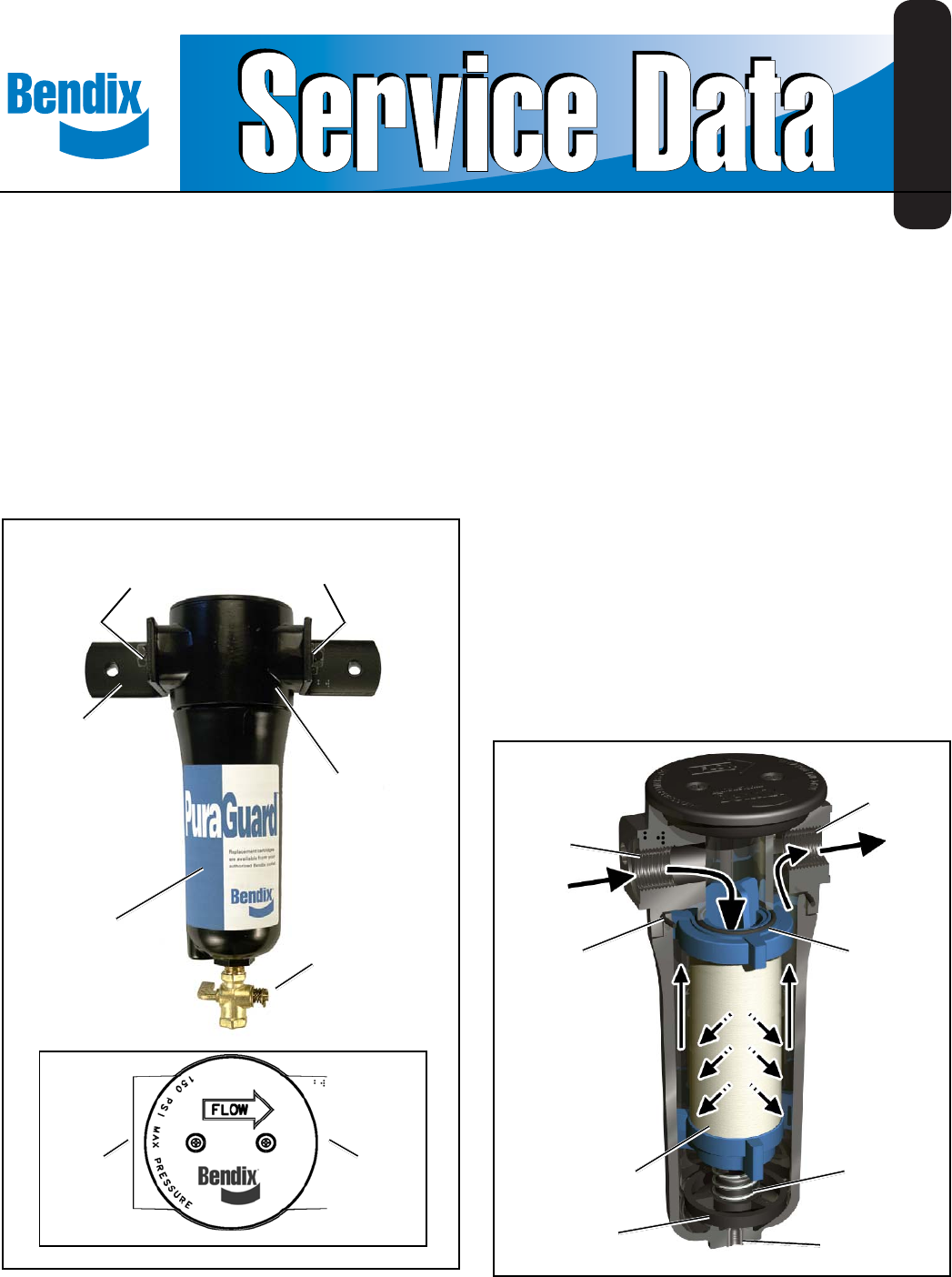

FIGURE 2 - CUT-AWAY SHOWING AIR FLOW

SPRING

FILTER

ELEMENT

HAS

O-RING

INCLUDED

DELIVERY

PORT

FILTER

ELEMENT

O-RING

SUPPLY

PORT

SPRING

LOCATOR

DRAIN

PORT

FIGURE 1 - PURAGUARD

SYSTEM FILTER

DELIVERY

PORT

SUPPLY

PORT

TOP

VIEW

ONE SUPPLY & ONE DELIVERY PORT

(SEE ARROW SYMBOL ON PURAGUARD

SYSTEM FILTER TOP COVER FOR AIR FLOW)

DRAIN VALVE

MOUNTING

BRACKET

(2)

PURAGUARD

SYSTEM FILTER

HEAD

SUMP

HOUSING

EXTERIOR

VIEW

1 2 3 4 5 6 7 8

Shrnutí obsahu

Strany 1 - System Filter

1®SD-08-187Bendix® PuraGuard® System FilterDESCRIPTIONThe PuraGuard® system filter is used to assist theproduction of purified compressed air on hig

Strany 2

22. Visually check for physical damage to the PuraGuard®system filter such as chaffed or broken air hoses andbroken or missing parts.3. Check mounting

Strany 3 - OPERATION & LEAKAGE TESTS

3FIGURE 6 - MAINTENANCE KITS AVAILABLEEvery 3,600 operating hours, or 100,000 miles or one(1) year:1. With the air system pressure at 0 p.s.i., drain

Strany 4 - REPLACING OR RETROFITTING THE

4procedures. Use only the proper tools and observeall precautions pertaining to use of those tools.4. If the work is being performed on the vehicle’s

Strany 5 - 1/2 NPT HEX NIPPLE

5ASSEMBLY1. Coat the drain valve threads with a liquid pipe threadsealant. Install the drain valve using two wrenches -one at the base of the PuraGua

Strany 6

6CONNECTING THE AIR HOSESFollow either Figure 4 or 5 for air hose arrangement.1. The PuraGuard® system filter supply and delivery portsare 1/2-14 NPT.

Strany 7 - PuraGuard

7PuraGuard® System Filter Troubleshooting ChartSYMPTOMS 1. More often than normal(monthly) sump drainingrequired.CAUSEREMEDYA. PuraGuard® system filte

Strany 8
