CONFIDENTIAL

Bendix Commercial Vehicle Systems LLC

Elyria, OH 44036

PRODUCT SPECIFICATION - BW-283-PR

SPEC. BW-283-PR

73 SHEETS

SHEET NO. 52

6.1.2 Frame Mount Configuration

The TABS6 can be mounted to the frame rail or cross-member. Through-holes

are provided for use of 3/8” fasteners. Bendix recommends the minimum use of

Grade 5 bolts, nuts and washers. Typical minimum length required is 5 inches.

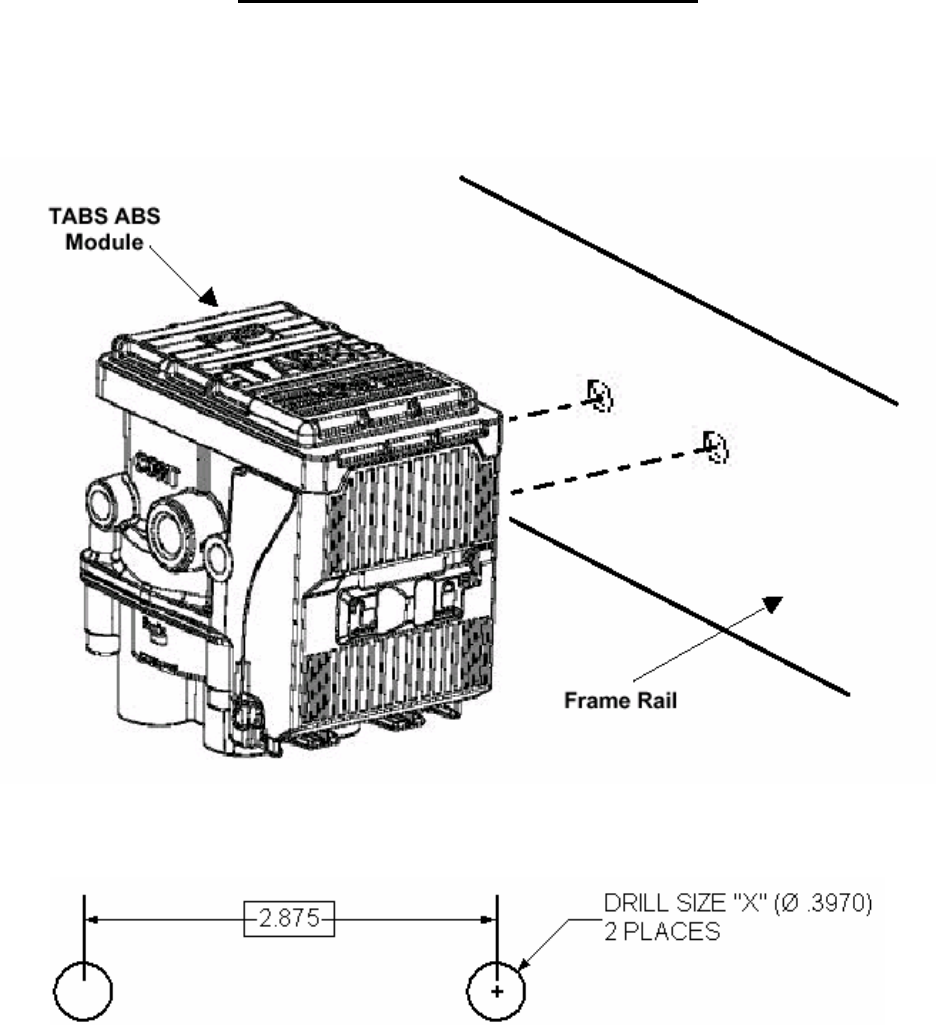

Figure 20: TABS6 Frame Mount

Figure 21: TABS6 Frame Mount Hole Pattern

DOCUMENTO CONTROLADO DE FORMATO ELECTRÓNICO: Antes de utilizarlo se requiere verificar el nivel de revision o la suficiencia.

CONTROLLED ELECTRONIC MEDIA DOCUMENT: Verification of revision level or adequacy is required prior to use.
