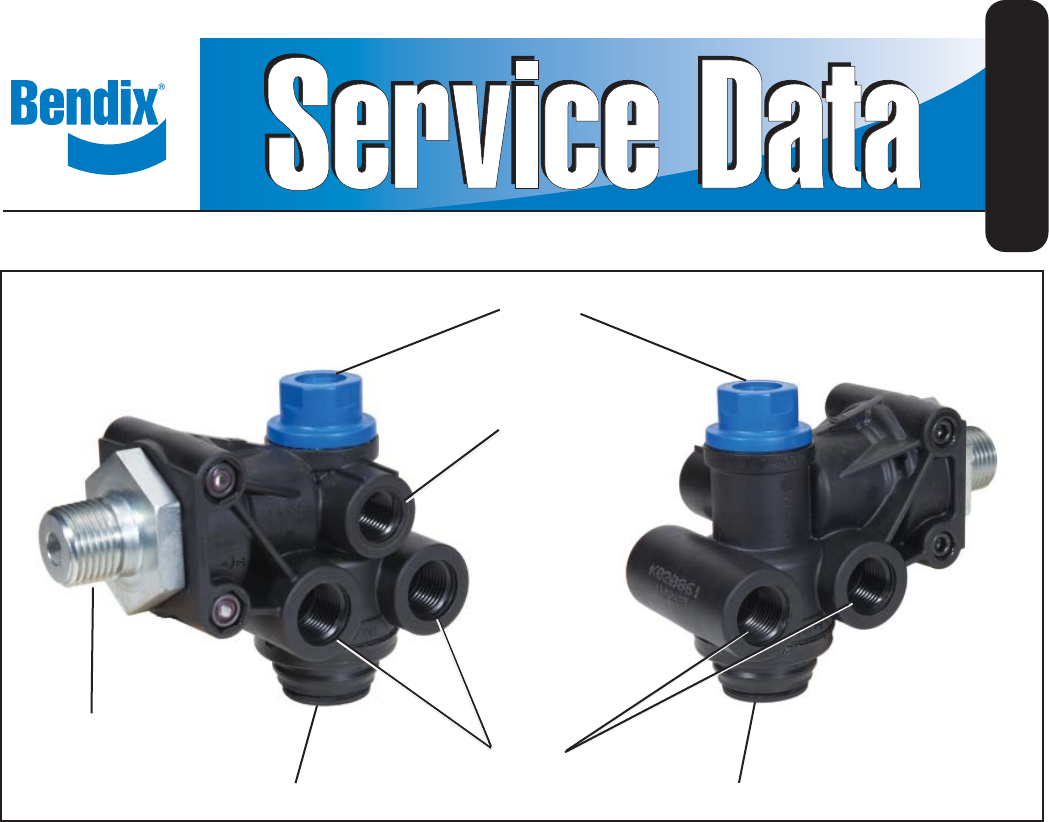

1SD-03-4656Bendix® SRC-7000™ Trailer Spring Brake ValveFIGURE 1 - BENDIX® SRC-7000™ TRAILER SPRING BRAKE VALVEEXHAUST1/4” NPT SUPPLY3/8” NPT DELIVERY

2FIGURE 2 - TYPICAL SYSTEM SCHEMATICS WITH A BENDIX® SRC-7000™ TRAILER SPRING BRAKE VALVESRC-7000™ VALVETRAILER SUPPLYTRAILER SERVICETrailer Schematic

3FIGURE 3 - CHARGING BELOW 85 PSIOPERATIONCHARGING BELOW 85 PSI (SEE FIGURE 3)Air fl ows through the trailer supply line, enters the trailer supply por

4FIGURE 5 - PARKING APPLICATIONFIGURE 6 - OPERATION WITH A FAILED RESERVOIRPARK APPLICATION (SEE FIGURE 5)To park the trailer, either the trailer air

5FIGURE 7 - ANTI-COMPOUNDING APPLICATIONworking in the engine compartment, the engine should be shut off and the ignition key should be removed. Where

68. Use only genuine Bendix® brand replacement parts, components and kits. Replacement hardware, tubing, hose, fi ttings, etc. must be of equivalent s
