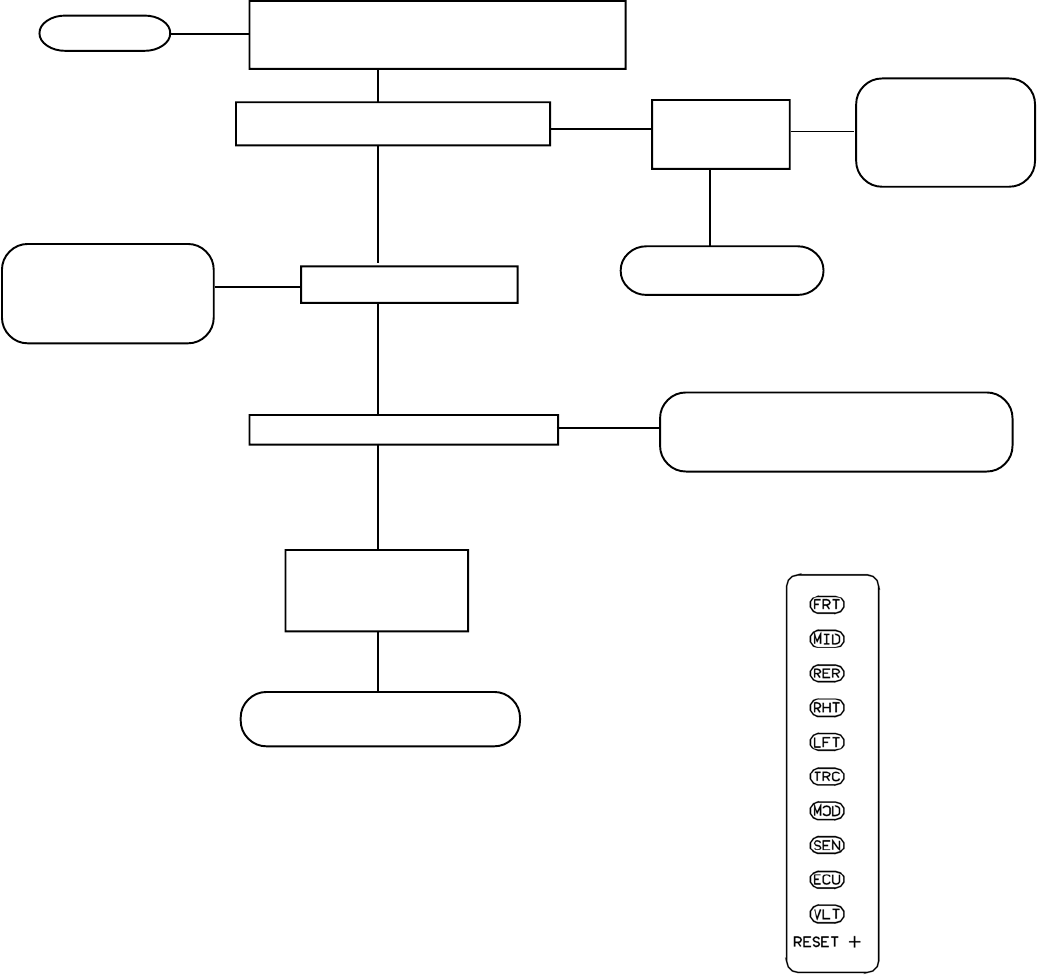

SECTION III - INSPECTION FOR ILLUMINATED LEDs

IS GREEN LED FLASHING?

YES

GO TO SECTION IX “TESTING FOR FALSE

FAILURE INDICATION - CAUSED BY

WHEEL SPEED COMPONENTS”

YES

INSPECT THE EC-16

™

CONTROLLER FOR

PRESENCE OF ILLUMINATED LEDS AND RECORD

START HERE

GO TO SECTION IV “INSPECTION

FOR ILLUMINATED LEDs”

EC-16

™

CONTROLLER

DIAGNOSTIC DISPLAY

GO TO SECTION V

“TESTING FOR POWER

TO THE EC-16

™

CONTROLLER”

IS GREEN VOLT LED ILLUMINATED?

ARE ANY RED

LEDs

ILLUMINATED?

GO TO SECTION V

“TESTING FOR POWER

TO THE EC-16

™

CONTROLLER”

REPLACE THE EC-16

™

CONTROLLER

ARE ANY RED LEDs ILLUMINATED?

NOTE AND RECORD

THE CONDITION OF

ALL RED LEDs
