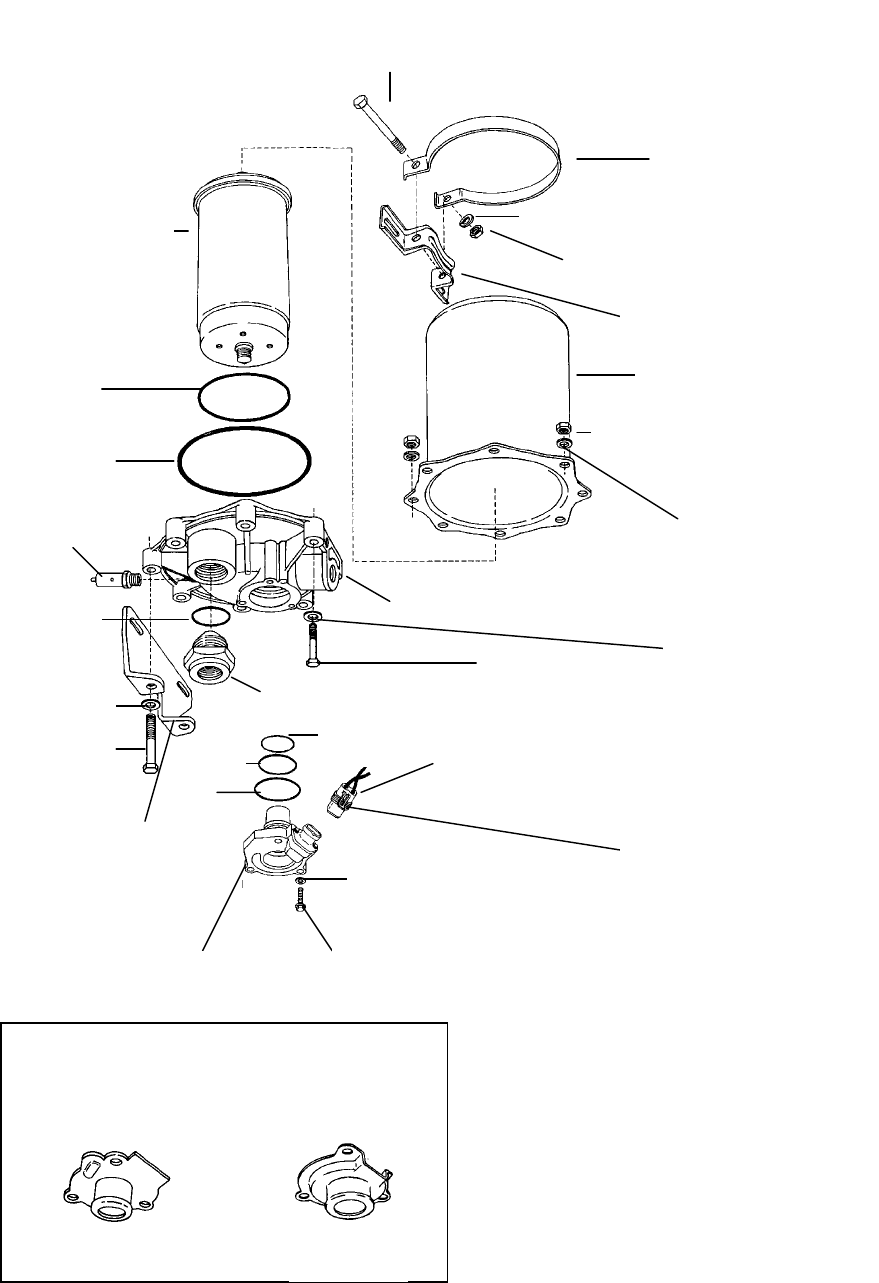

Upper Bracket Strap

5/16” x 4-1/2” Upper

Bracket Cap Screw

5/16”

Lock Nu

t

5/16” Lock Washer

Upper Mounting Bracket

Housing

Lock Nut

Desiccant

Complete

Cartridge

O-Ring

O-Ring

Safety

Valve

3/8” Special

Washe

r

End Cover

3/8” Cap

Screw

3/8”

Special

Washer

Lower Mounting

Bracke

t

Check Valve Assembly

3/8” Cap

Scre

w

3/8” Special Washer

O-Ring

Wiring Harness

Connector

Seal

11

10

9

3

4

Exhaust

Cove

r

EXTENDED EXHAUST COVERS

OLD VERSION NEW VERSION

1 2 3

Technical Bulletin 1
Kit 5005037 2
