SD-03-3602

Bendix

TW-1

™

, TW-3

™

, TW-4

™

, TW-5

™

& TW-6

™

Control Valves

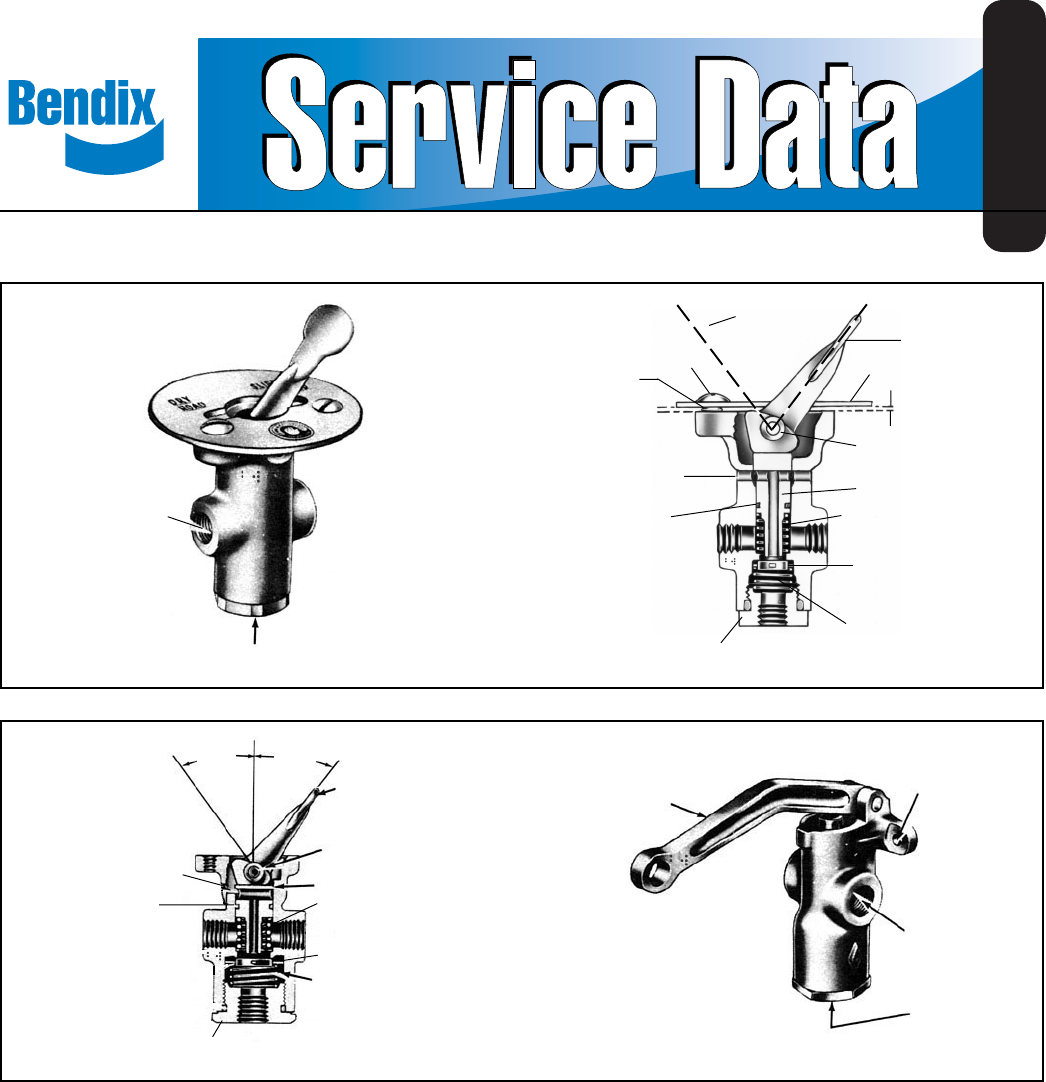

FIGURE 1 TW-1

™

CONTROL VALVE

1/8” P.T.

SUPPLY

SCREW

1/8” P.T.

DELIVERY

(2 PORTS)

.28” DIA.

2 HOLES-1.88”

APART

1/4" P.T.

DELIVERY

PORTS (2)

FIGURE 2 - TW-3

™

CONTROL VALVE

REVERSED LEVER

POSITION

LEVER

DIAL

PANEL

THICKNESS

.06 OR LESS

PLUNGER

SEAL

#10-24

THD.

(2 HOLES)

EXHAUST

LEVER

VALVE SPRING

SUPPLY

CAP NUT

37.5°

PLUNGER

37.5°

LEVER

1/4” NPT

SUPPLY

DESCRIPTION

The TW series valves are manually operated, non-graduating,

on-off valves. They are extensively used in air systems to

control nonmodulating air controlled devices. They may be

lever or button operated, direct or remote control.

The TW-1

™

valve (Figure 1) is normally panel mounted and

can be provided with a steel, zinc or nylon manually operated

lever. Some are equipped with a steel lever with connectors

for Bowden cable control. All TW-1

™

valves have 1/8" NPT

ports.

The TW-3

™

valve (Figure 2) is lever operated, either direct or

remote and differs from the TW-1

™

valve in having 1/4" NPT

ports and a larger body and capacity. Some versions have a

heavy inlet valve spring making them suitable for vacuum

control.

TW-4

™

(Figure 3) and TW-5

™

valves are similar to the TW-1

™

valve except the plunger is designed for a push button

(TW-4

™

valve), giving momentary application whenever the

button is depressed. The TW-5

™

valve is similar, but has an

extended plunger.

SUPPLY

CAP NUT

INLET VALVE

SPRING

INLET VALVE

PLUNGER RETURN

SPRING

PLUNGER

SEAL

INLET VALVE

PLUNGER RETURN SPRING

PLUNGER

1 2 3 4
