ADV7129

–5–

REV. 0

ABSOLUTE MAXIMUM RATINGS

to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V

Voltage on Any Digital Pin . . . . GND – 0.5 V to V

+ 0.5 V

Ambient Operating Temperature (T

) . . . . . . . . 0°C to +70°C

Storage Temperature (T

) . . . . . . . . . . . . . . –65°C to +150°C

Junction Temperature (T

) . . . . . . . . . . . . . . . . . . . . . +150°C

Lead Temperature (Soldering, 10 sec) . . . . . . . . . . . . . +260°C

Vapor Phase Soldering (1 minute) . . . . . . . . . . . . . . . . +220°C

Analog Outputs to GND

. . . . . . . . . . . GND – 0.5 V to V

Current on Any DAC Output . . . . . . . . . . . . . . . . . . . . 60 mA

NOTES

Stresses above those listed under “Absolute Maximum Ratings” may cause

permanent damage to the device. This is a stress rating only and functional

operation of the device at these or any other conditions above those listed in the

operational sections of this specification is not implied. Exposure to absolute

maximum rating conditions for extended periods may affect device reliability.

Analog Output Short Circuit to any Power Supply or Common can be of an

indefinite duration.

ORDERING GUIDE*

Model Temperature Range Package Option

ADV7129KS 0°C to +70°C S-304

*Due to the specialized nature and application of this part, it is not automati-

cally available to order. Please contact your local sales office for details.

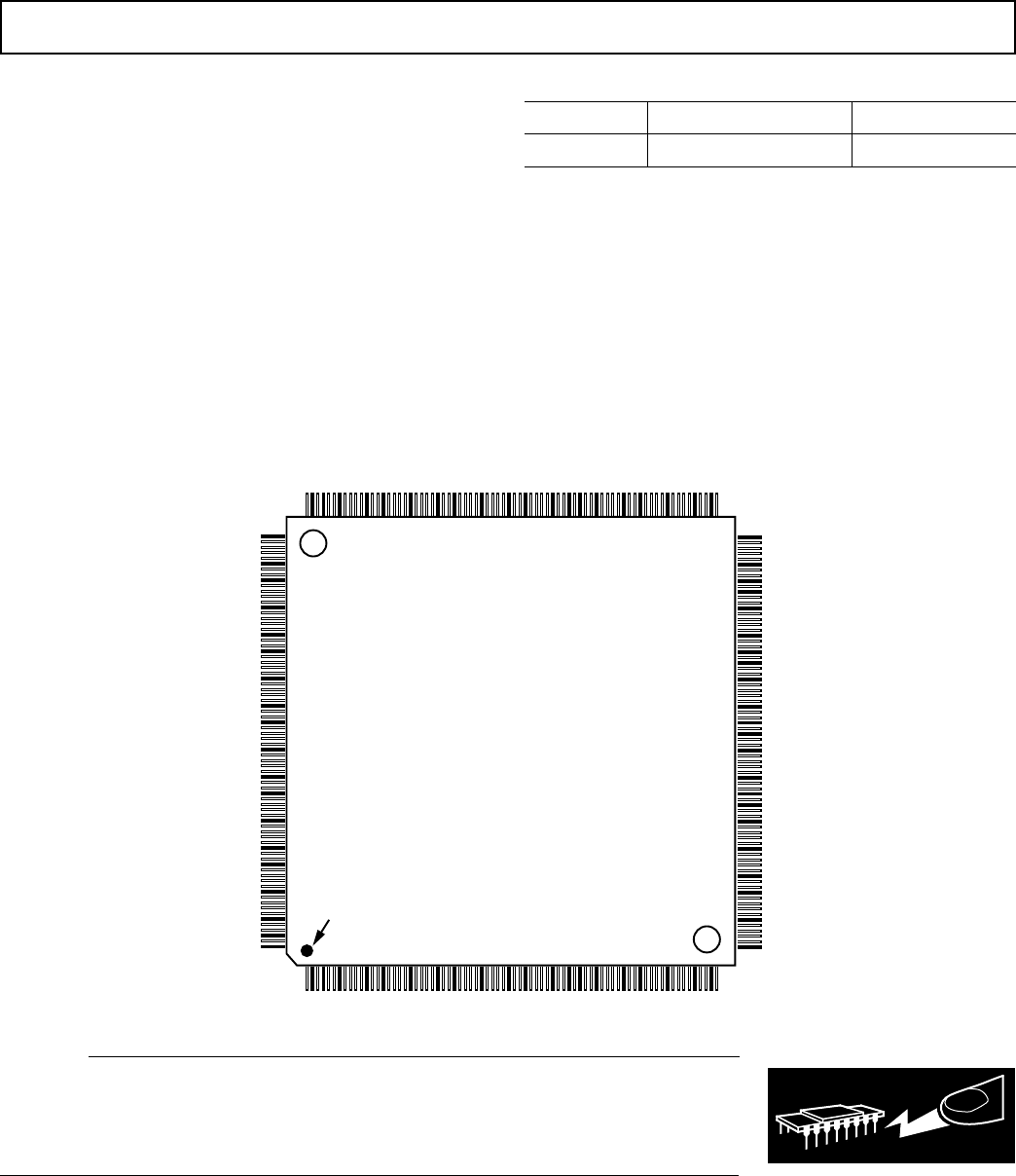

304-LEAD PQFP PIN CONFIGURATION

152

PIN NO. 1 IDENTIFIER

304

153228

229

ROW A

ROW BROW D

ADV7129

PQFP

TOP VIEW

(Not to Scale)

ROW C

WARNING!

ESD SENSITIVE DEVICE

CAUTION

ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily

accumulate on the human body and test equipment and can discharge without detection.

Although the ADV7129 features proprietary ESD protection circuitry, permanent damage may

occur on devices subjected to high energy electrostatic discharges. Therefore, proper ESD

precautions are recommended to avoid performance degradation or loss of functionality.
